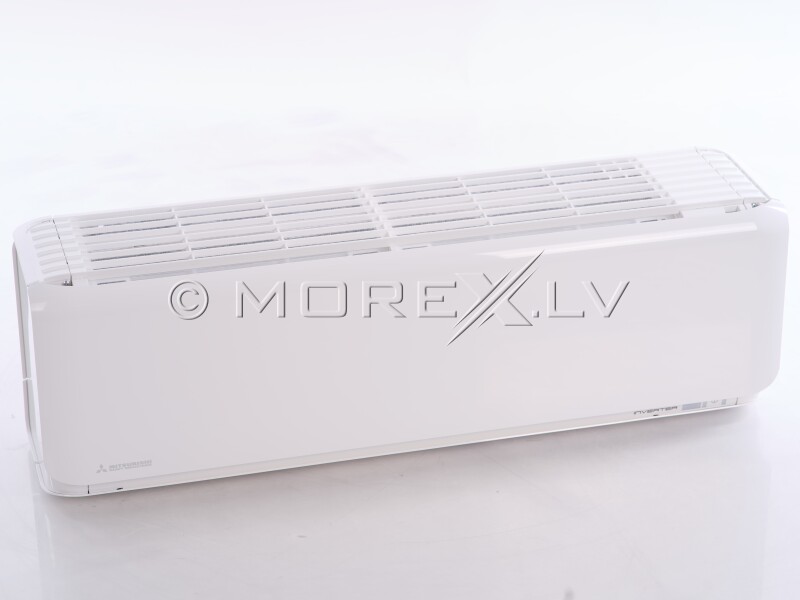

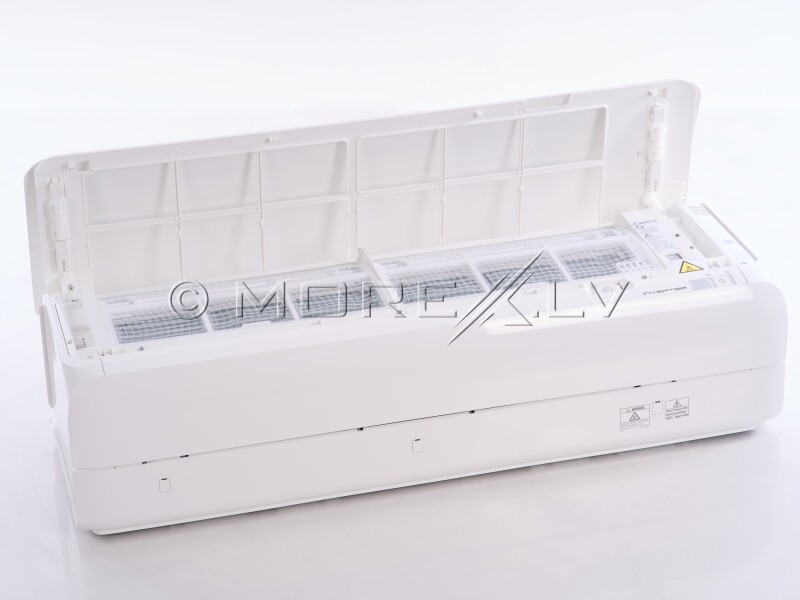

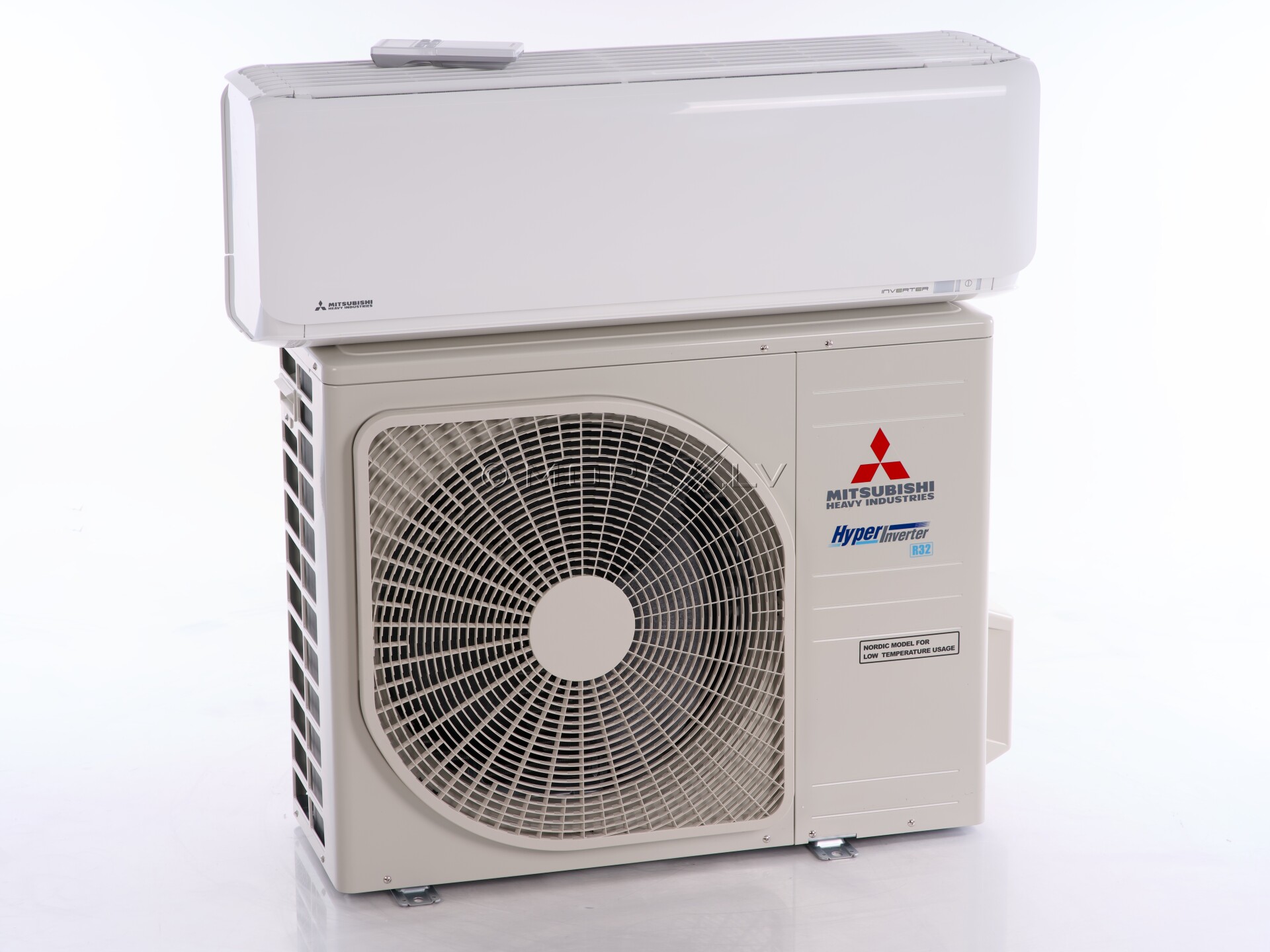

Air conditioner (heat pump) Mitsubishi SRK-SRC25ZTX-WA Kazan Arctic series

The Mitsubishi Heavy Industries Kazan Arctic 25ZTX-WA is a high-efficiency inverter air-to-air heat pump designed to provide reliable year-round indoor comfort. It delivers efficient cooling during the summer and powerful, dependable heating during the cold winter season.

The system combines advanced Mitsubishi Heavy Industries inverter technology with excellent seasonal efficiency, achieving an A+++ energy efficiency rating in both cooling and heating modes. With a SEER of 9.50 and a SCOP of 5.20, the 25ZTX-WA provides high seasonal efficiency while keeping energy consumption under control.

The Kazan Arctic series is specifically designed for cold-climate operation. The SRK25ZTX-WA / SRC25ZTX-WA system is engineered to maintain efficient heating performance at very low outdoor temperatures. Its heating capacity ranges from 0.9 to 7.8 kW, with a maximum heating capacity of 4.8 kW at -15°C and 4.3 kW at -20°C.

The system uses the modern R32 refrigerant and features 3D AUTO airflow control, which automatically adjusts the direction of the air stream to provide more even air distribution throughout the room. The indoor unit operates from just 19 dB(A) at its lowest fan speed, making it particularly suitable for bedrooms and other noise-sensitive spaces.

The integrated Wi-Fi module allows convenient remote control from a smartphone, including temperature adjustment and selection of the operating mode.

Key Benefits

• A+++ Energy Efficiency: A+++ rating in both cooling and heating modes.


• High Seasonal Efficiency: SEER 9.50 and SCOP 5.20.


• Cold-Climate Heating: Designed for efficient heating in very low outdoor temperatures.


• High Heating Capacity: Up to 7.8 kW maximum heating capacity under specified operating conditions.


• Strong Low-Temperature Performance: Up to 4.8 kW at -15°C and 4.3 kW at -20°C.


• Ultra-Quiet Operation: Indoor sound pressure level from just 19 dB(A).


• Built-in Wi-Fi: Remote control via smartphone.


• 3D AUTO Airflow: Automatic airflow direction control for more even air distribution.


• R32 Refrigerant: Modern refrigerant with a lower global warming potential than many older refrigerants.


• Year-Round Comfort: Efficient operation in both cooling and heating modes.


Specifications

• Type: Wall-mounted inverter split system / air-to-air heat pump


• Series: Mitsubishi Heavy Industries Kazan Arctic / ZTX Arctic

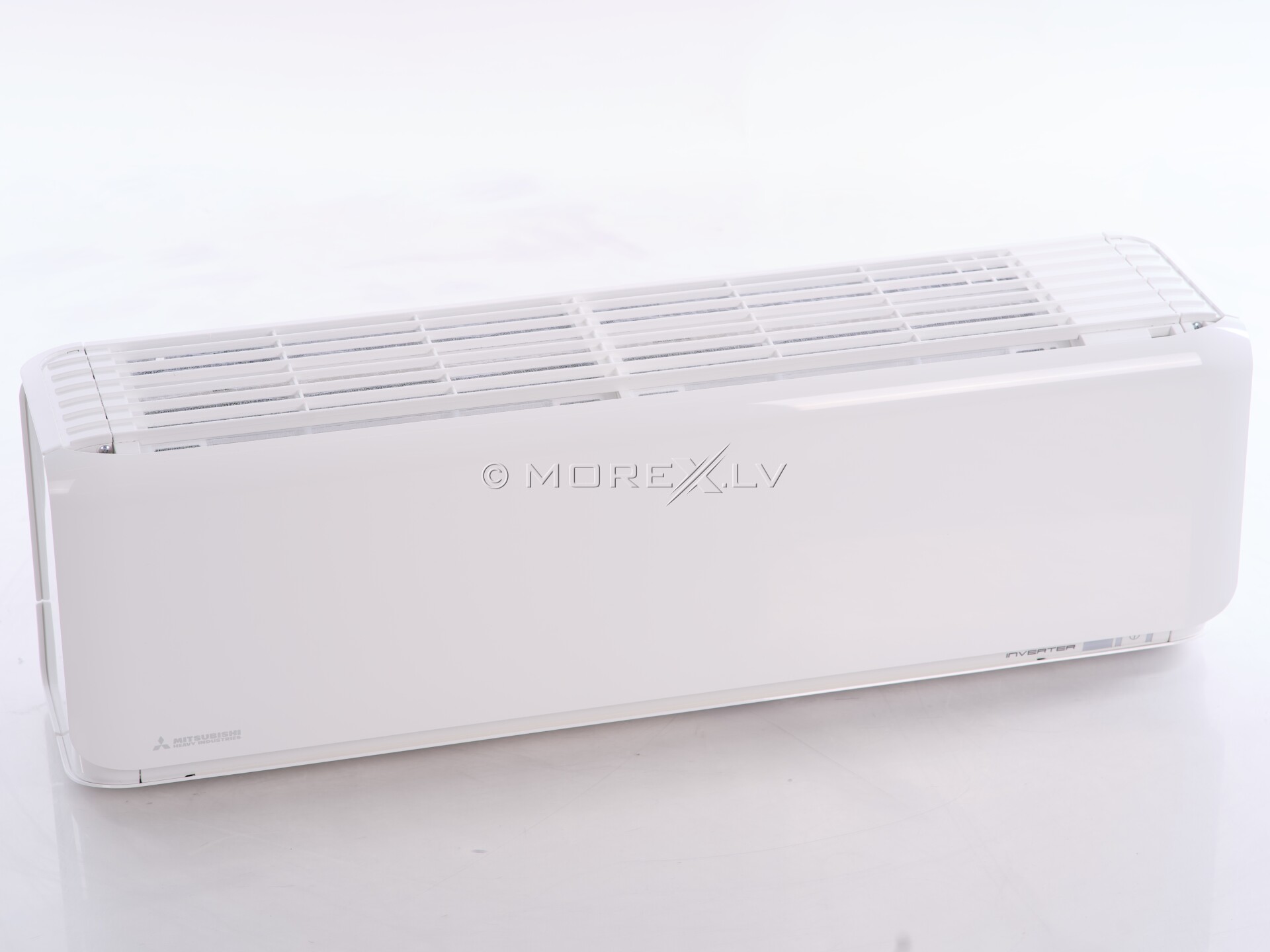

• Indoor Unit: SRK25ZTX-WA


• Outdoor Unit: SRC25ZTX-WA


• Cooling Capacity: 2.5 kW (0.9–3.8 kW)


• Heating Capacity: 3.2 kW (0.9–7.8 kW)


• Maximum Heating Capacity at -15°C: 4.8 kW


• Maximum Heating Capacity at -20°C: 4.3 kW


• Energy Class (Cooling / Heating): A+++ / A+++


• SEER: 9.50


• SCOP: 5.20


• Rated Power Consumption (Cooling): 0.45 kW


• Rated Power Consumption (Heating): 0.59 kW


• Maximum Running Current: 14.5 A


• Refrigerant: R32


• Refrigerant Charge: 1.25 kg


• Indoor Sound Pressure Level: 19–39 dB(A) in cooling; 19–41 dB(A) in heating


• Outdoor Sound Pressure Level: 44 dB(A) cooling / 45 dB(A) heating


• Indoor Airflow: up to 11.7 m³/min in cooling and 14.8 m³/min in heating


• Heating Operating Range: down to -30°C according to the product data sheet


• Cooling Operating Range: -15°C to +46°C


• Maximum Refrigerant Pipe Length: 25 m


• Maximum Height Difference: 15 m


• Power Supply: 220–240 V, 1-phase, 50 Hz


• Wi-Fi: Built-in

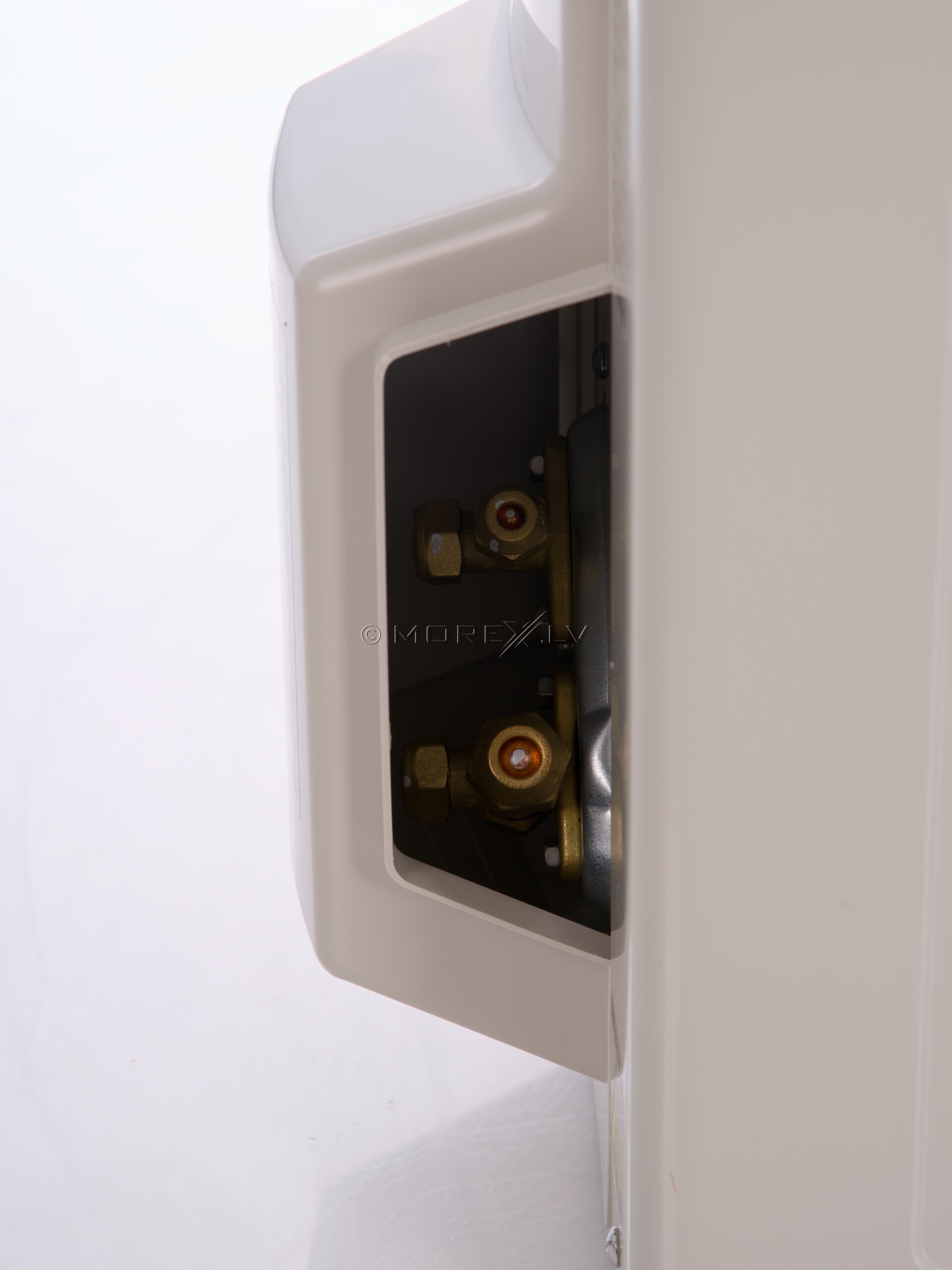

• Refrigerant Piping: 1/4" liquid / 3/8" gas

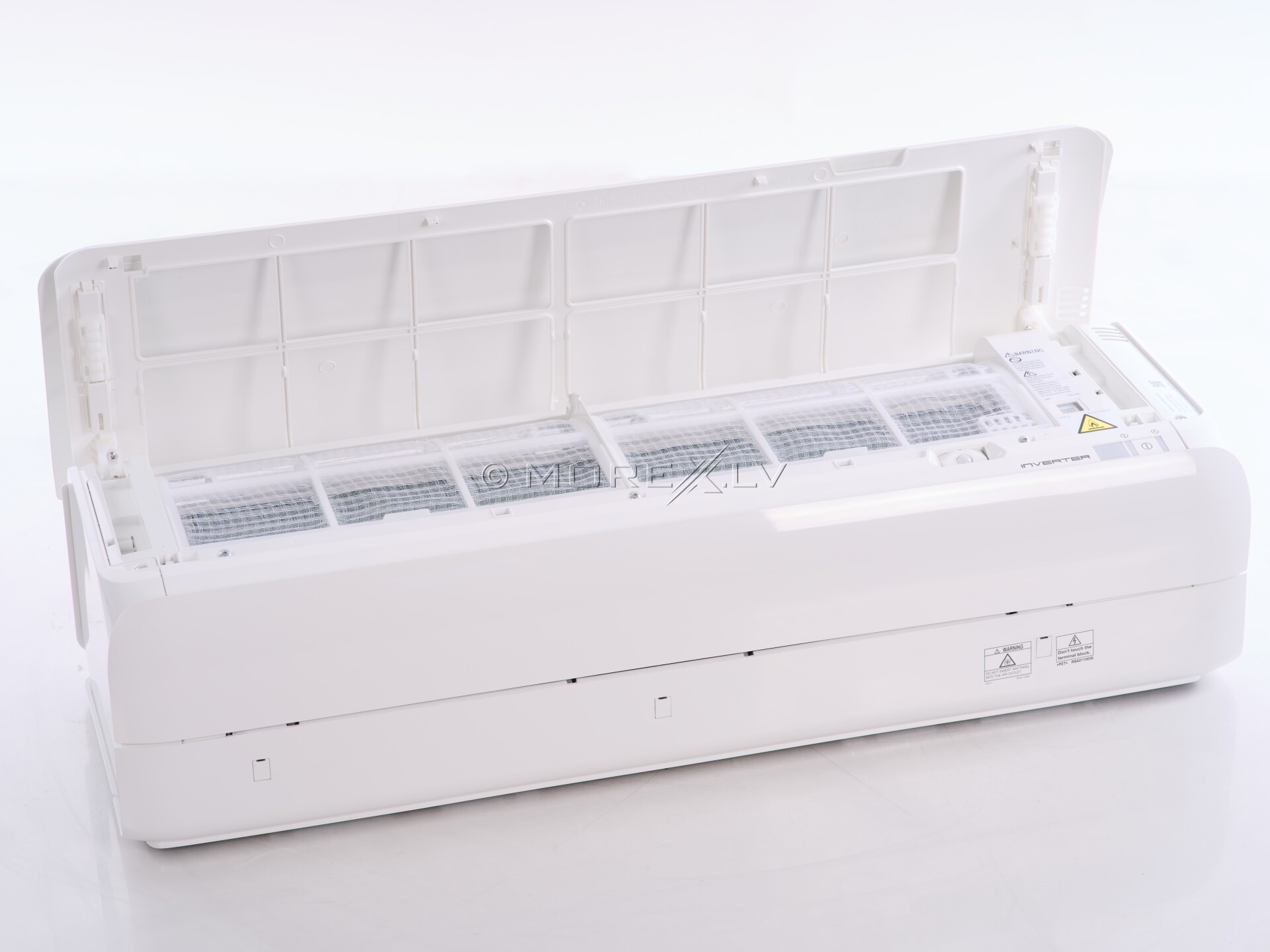

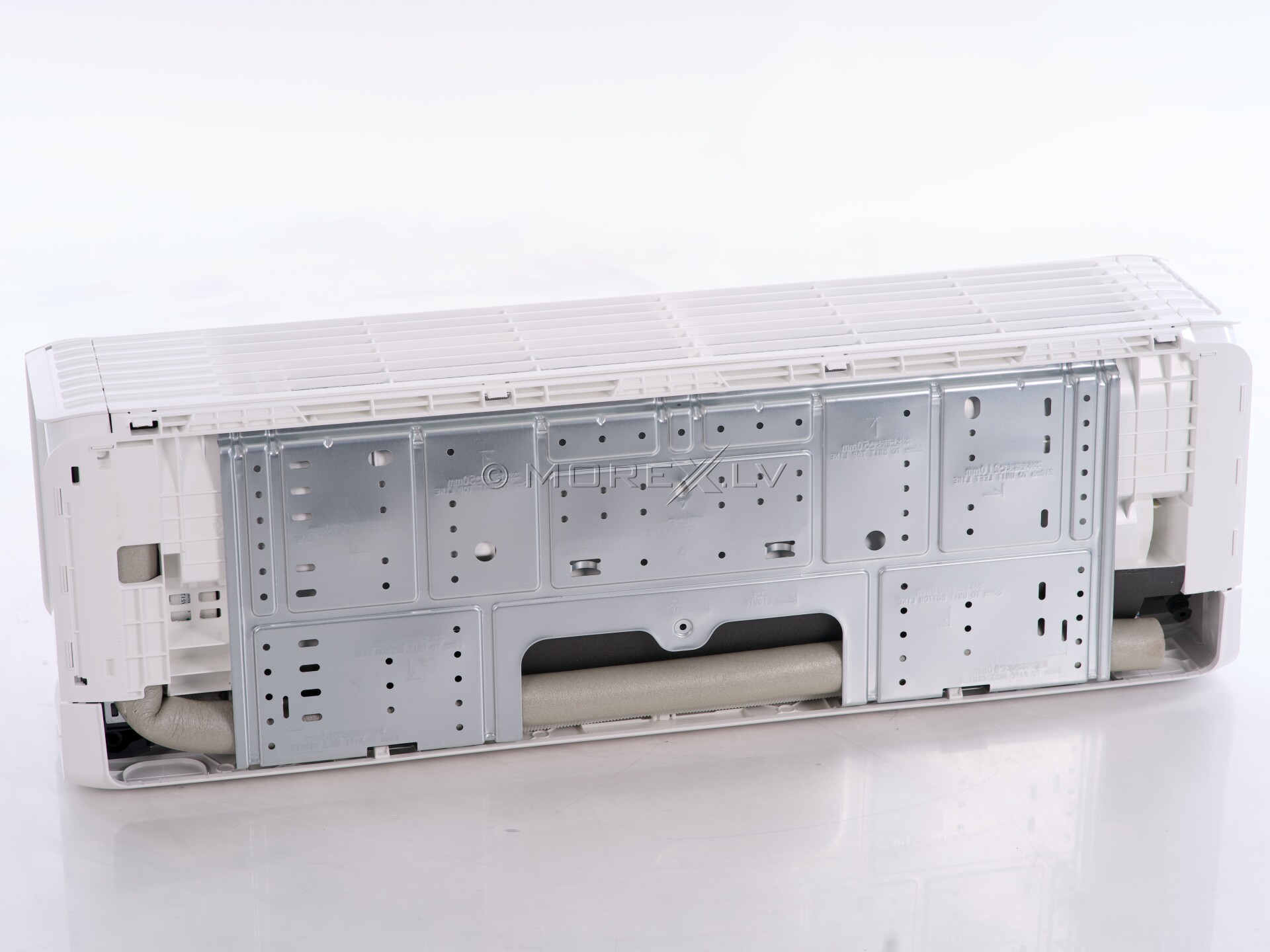

Indoor Unit:

• Dimensions: 305 × 920 × 220 mm (H × W × D)


• Weight: 13 kg

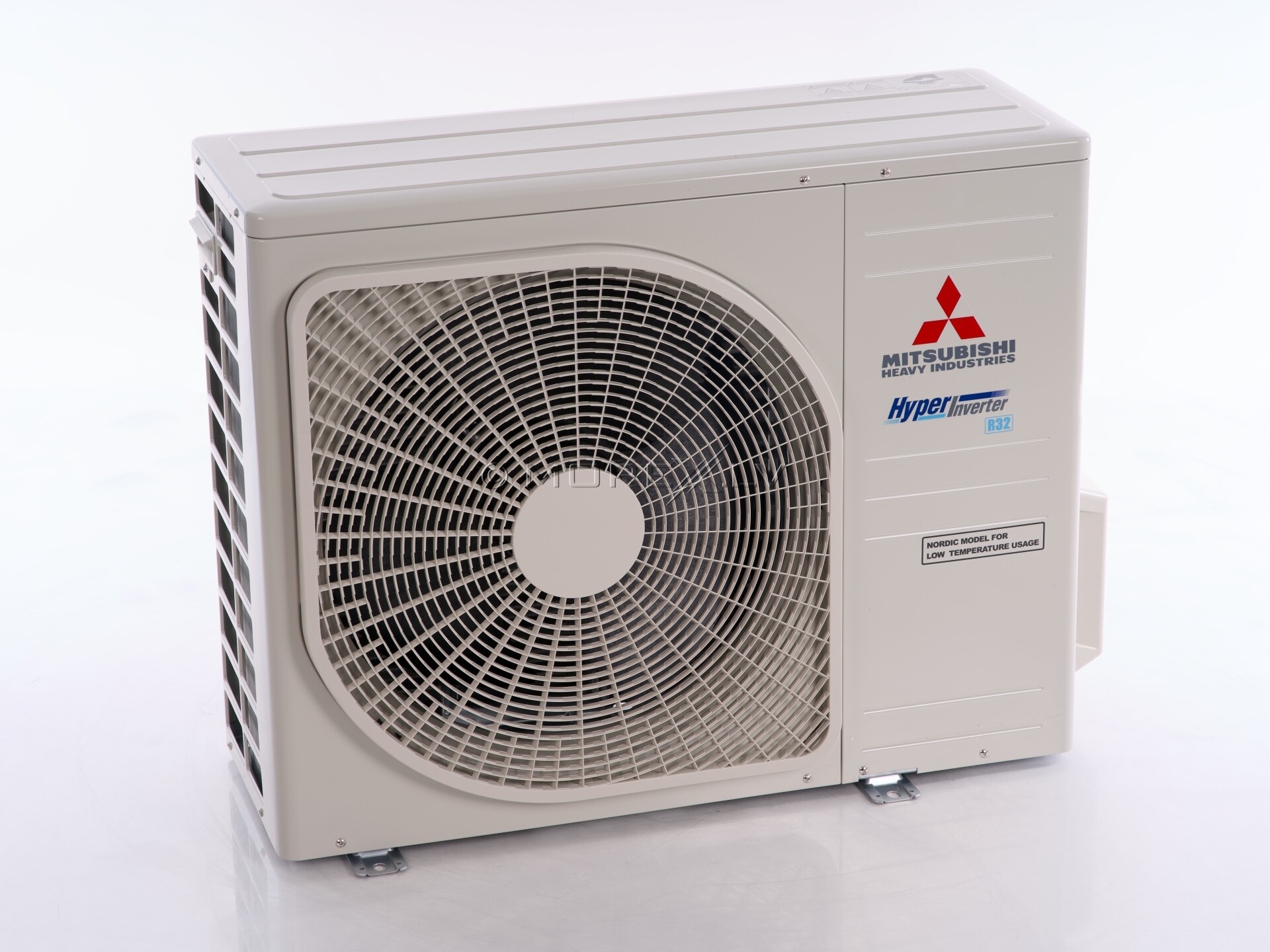

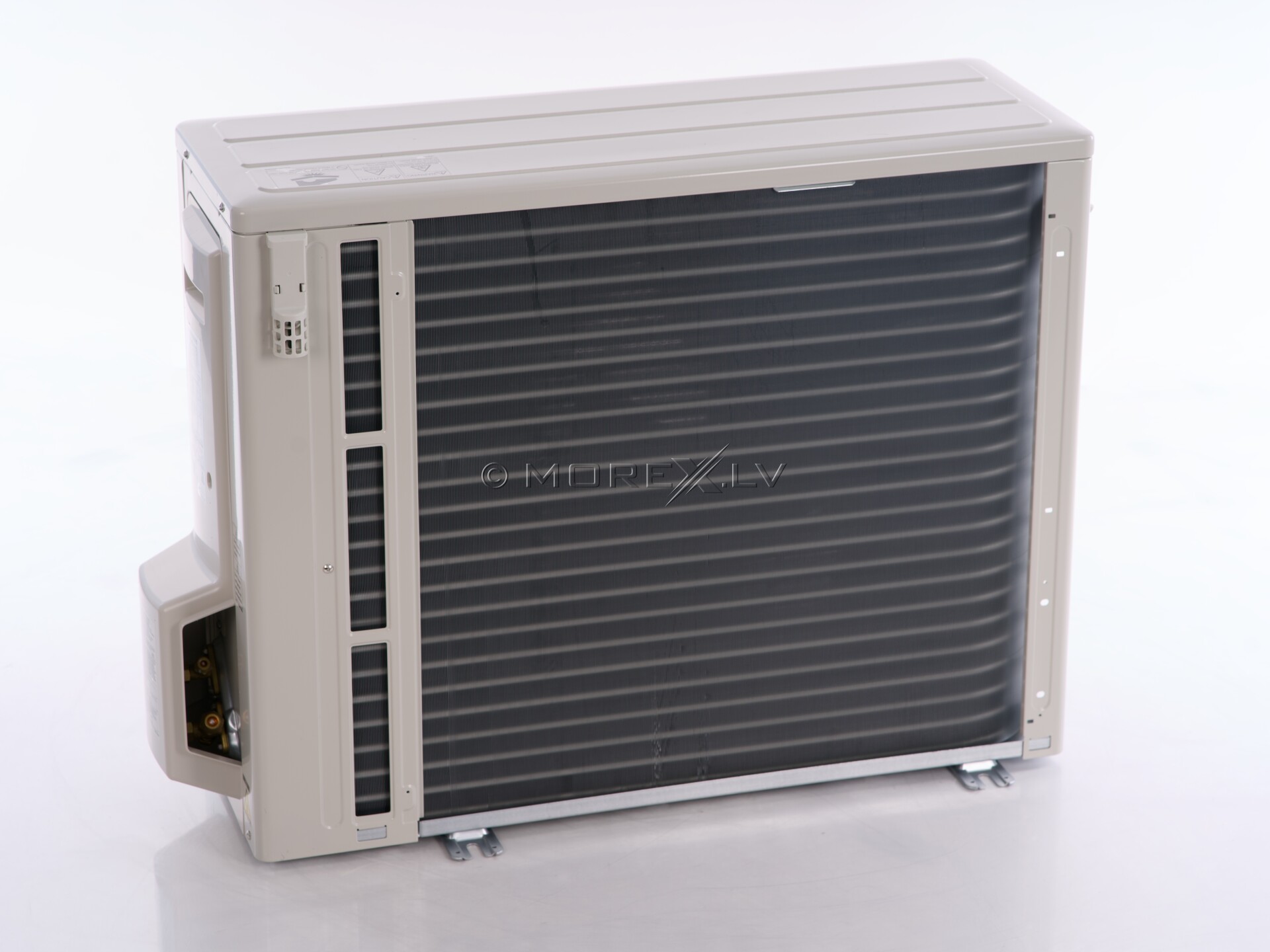

Outdoor Unit:

• Dimensions: 640 × 800(+71) × 290 mm (H × W × D)


• Weight: 45 kg
