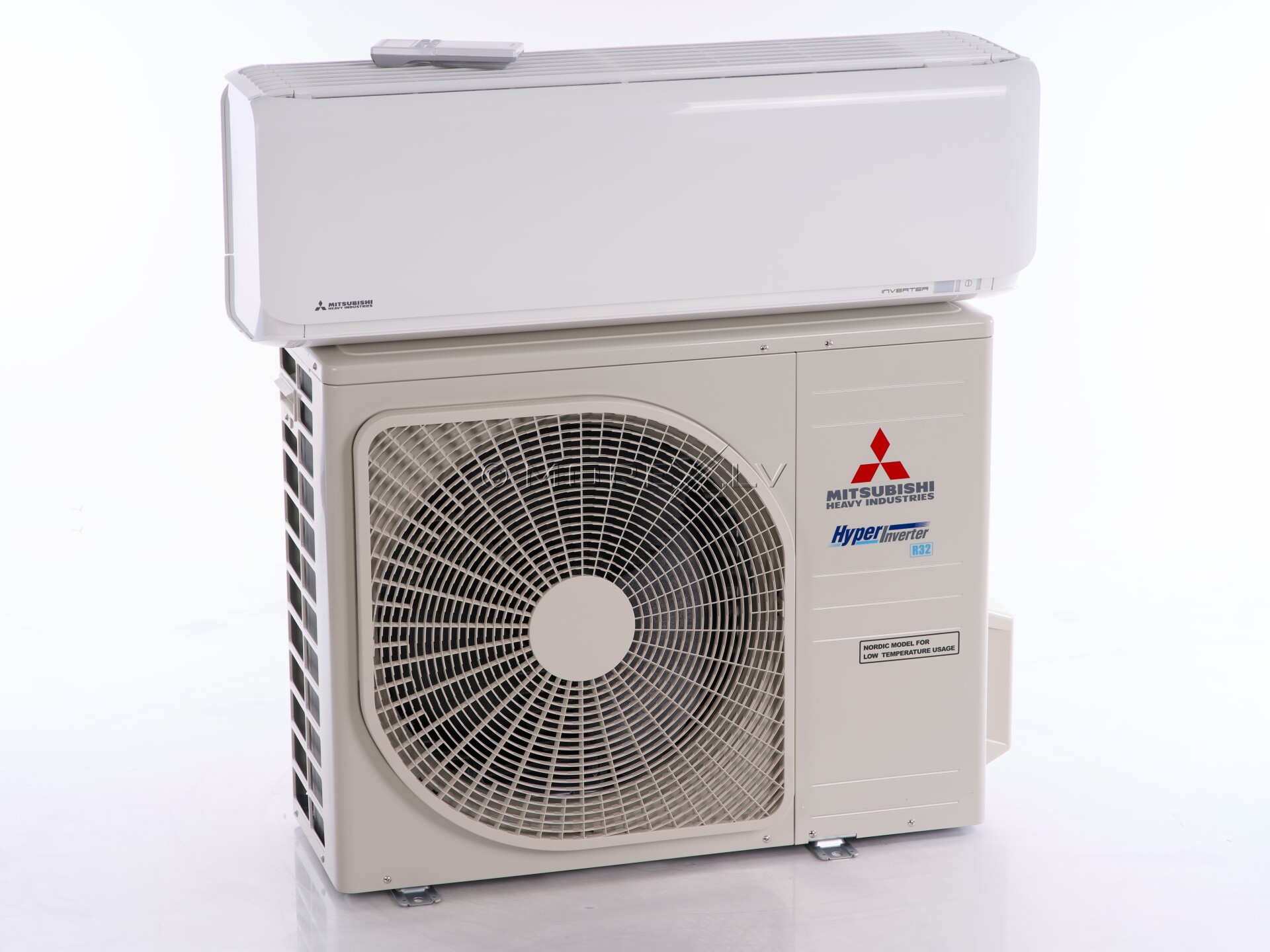

Air conditioner (heat pump) Mitsubishi SRK-SRC35ZTX-WA Kazan Arctic series

Key Features

• Cooling capacity: 3.5 kW (0.9–4.5 kW)

• Heating capacity: 4.3 kW (0.9–8.0 kW)

• Heating capacity at –15 °C: up to 5.0 kW

• Heating capacity at –20 °C: up to 4.4 kW

• Energy class: A+++ / A+++

• SEER: 9.50

• SCOP: 5.10

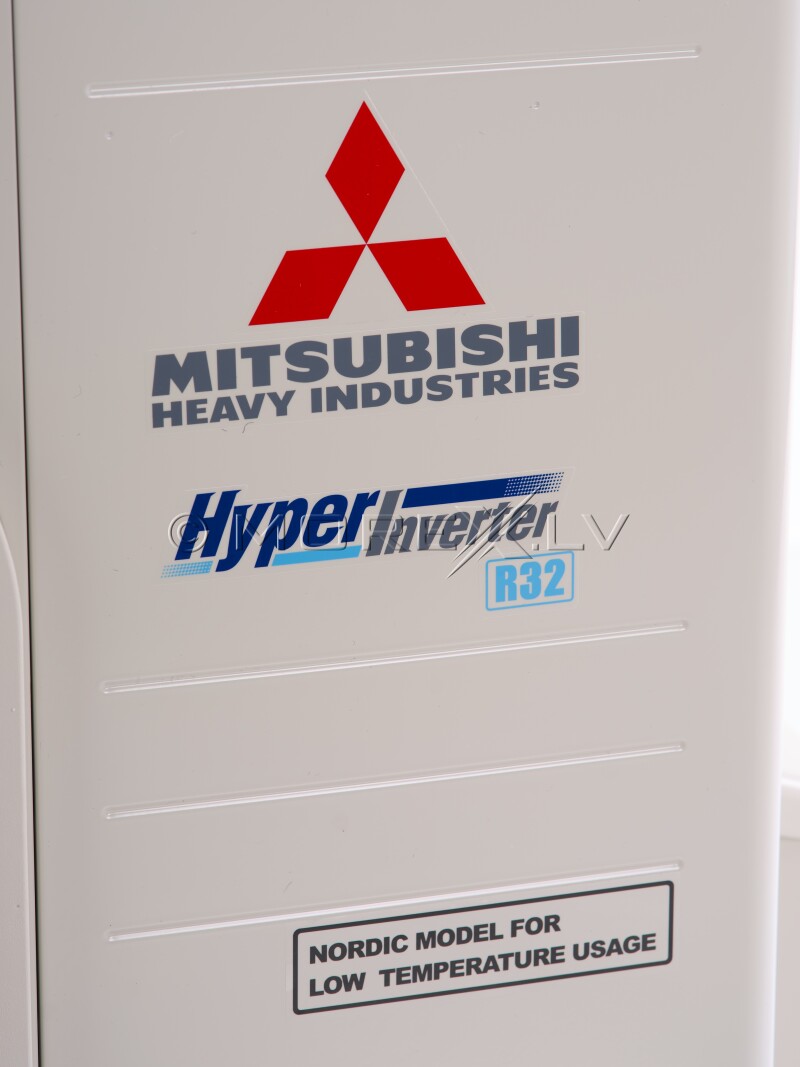

• Heating operation: down to –25 °C

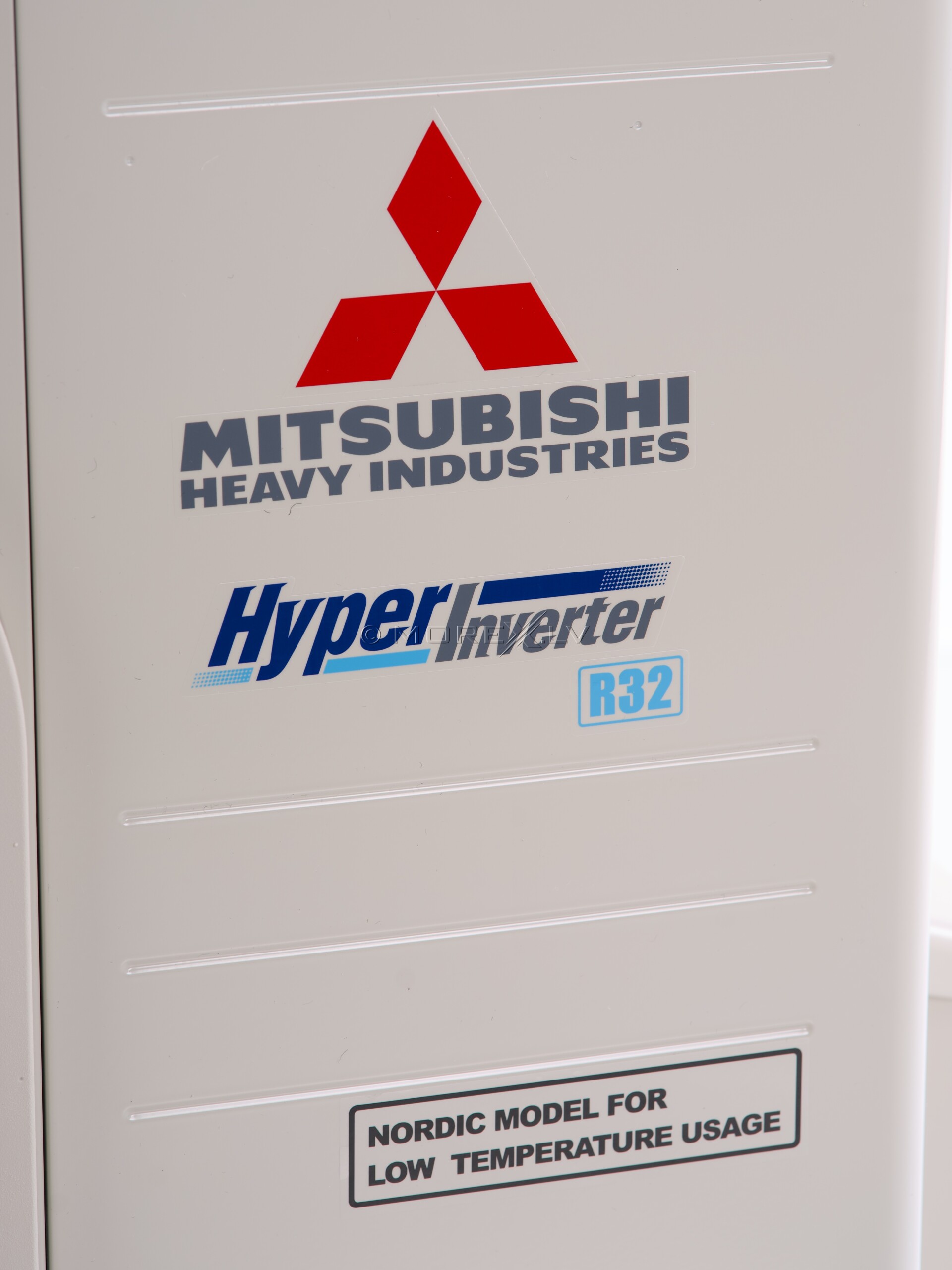

• Refrigerant: R32

• Wi-Fi: built-in

• Noise level: from 19 dB(A)

• 3D AUTO airflow control

• Maximum airflow: 13.2 m³/min cooling / 15.3 m³/min heating


Power Consumption

• Cooling: 0.74 kW nominal

• Heating: 0.87 kW nominal

• Maximum current: 14.5 A

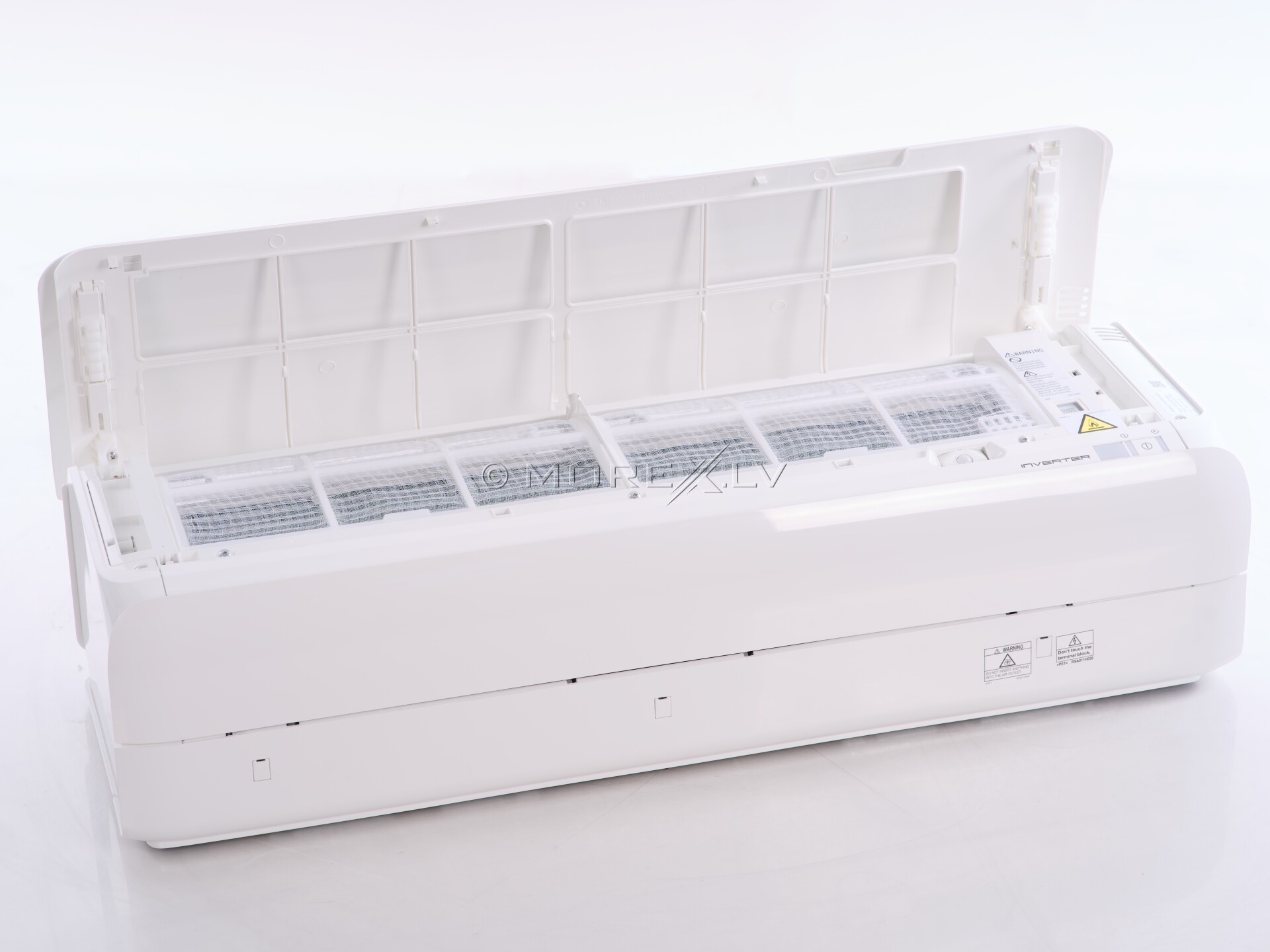

Air Filtration

• Allergen Clear Filter

• Photocatalytic Washable Deodorizing Filter


Technical Specifications

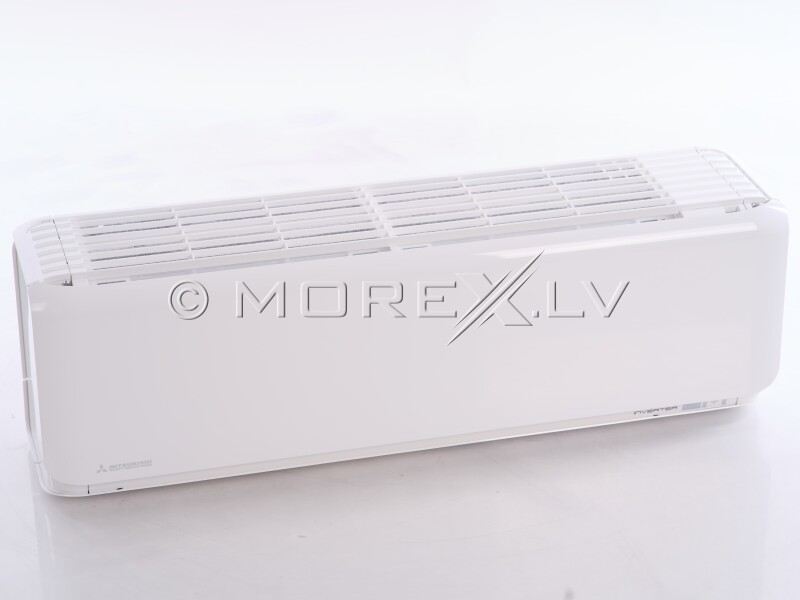

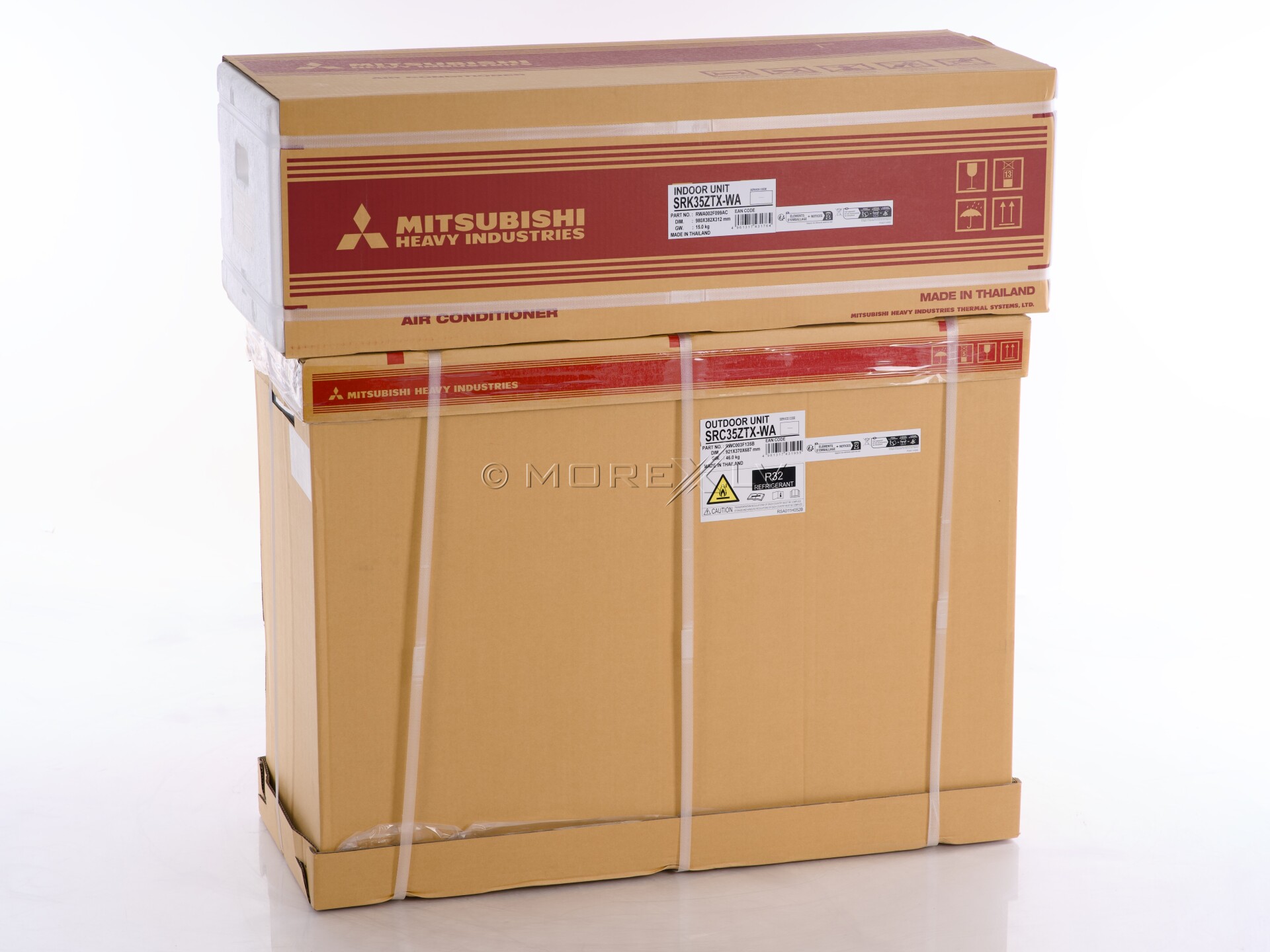

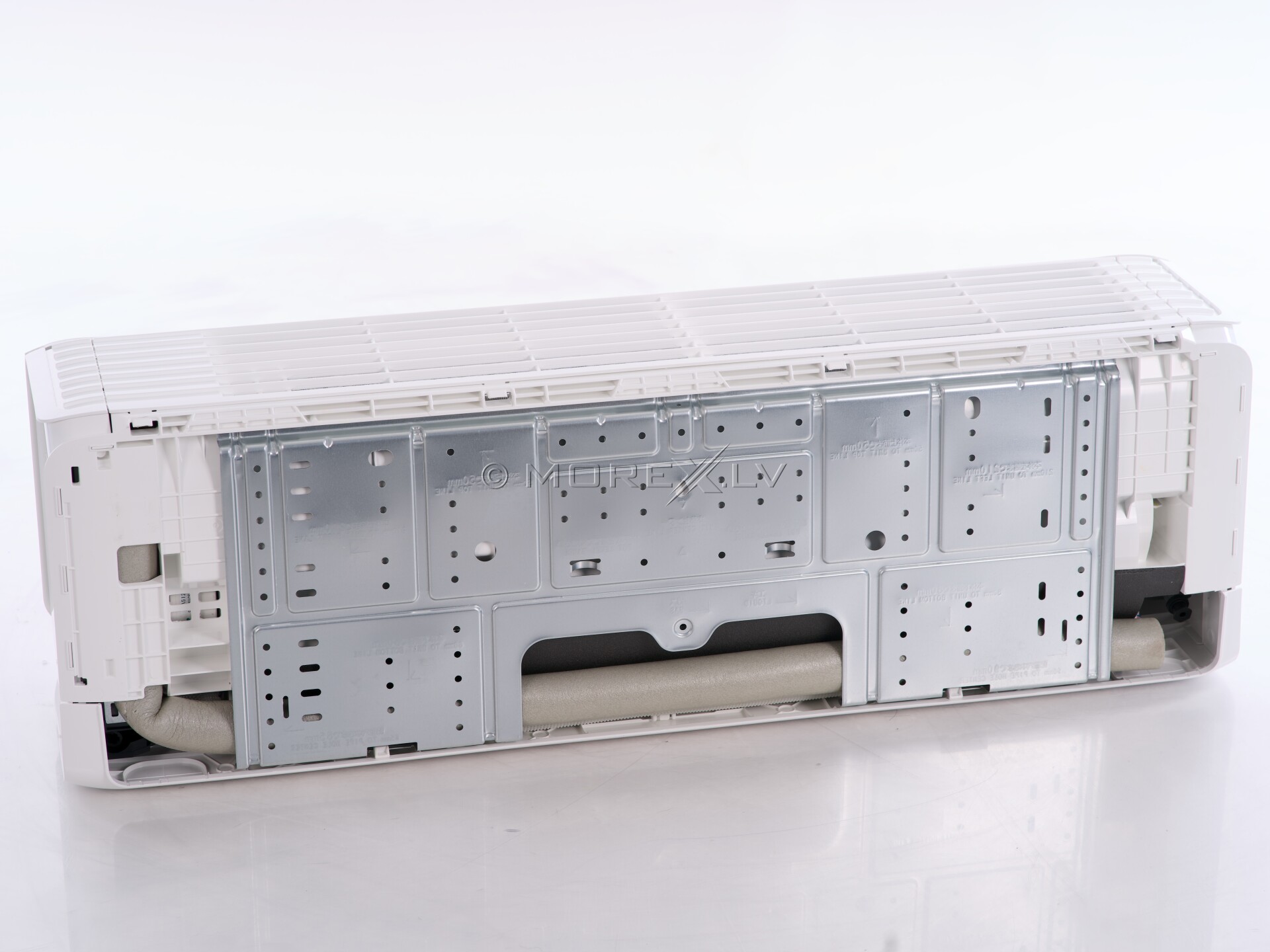

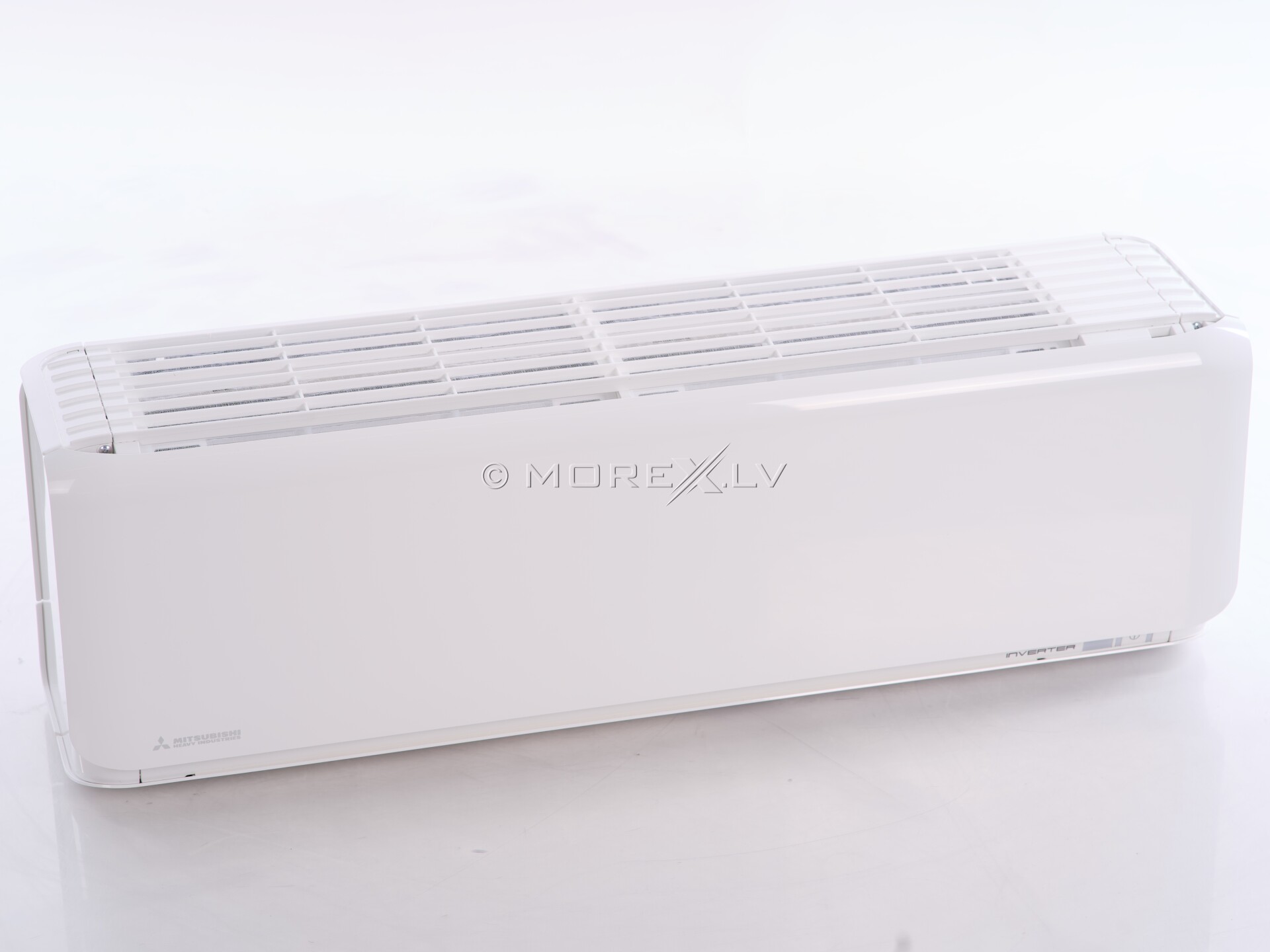

• Indoor unit: SRK35ZTX-WA

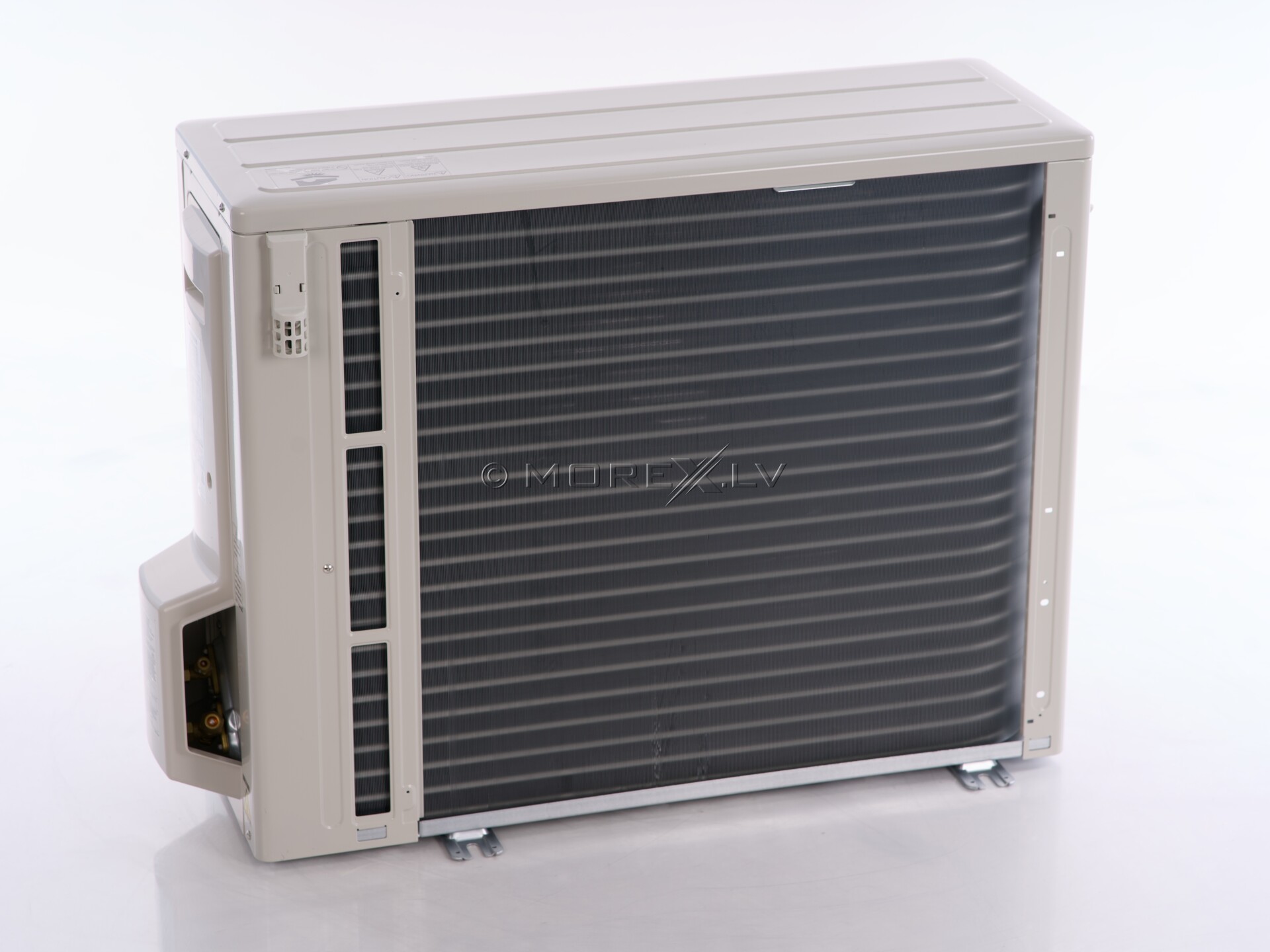

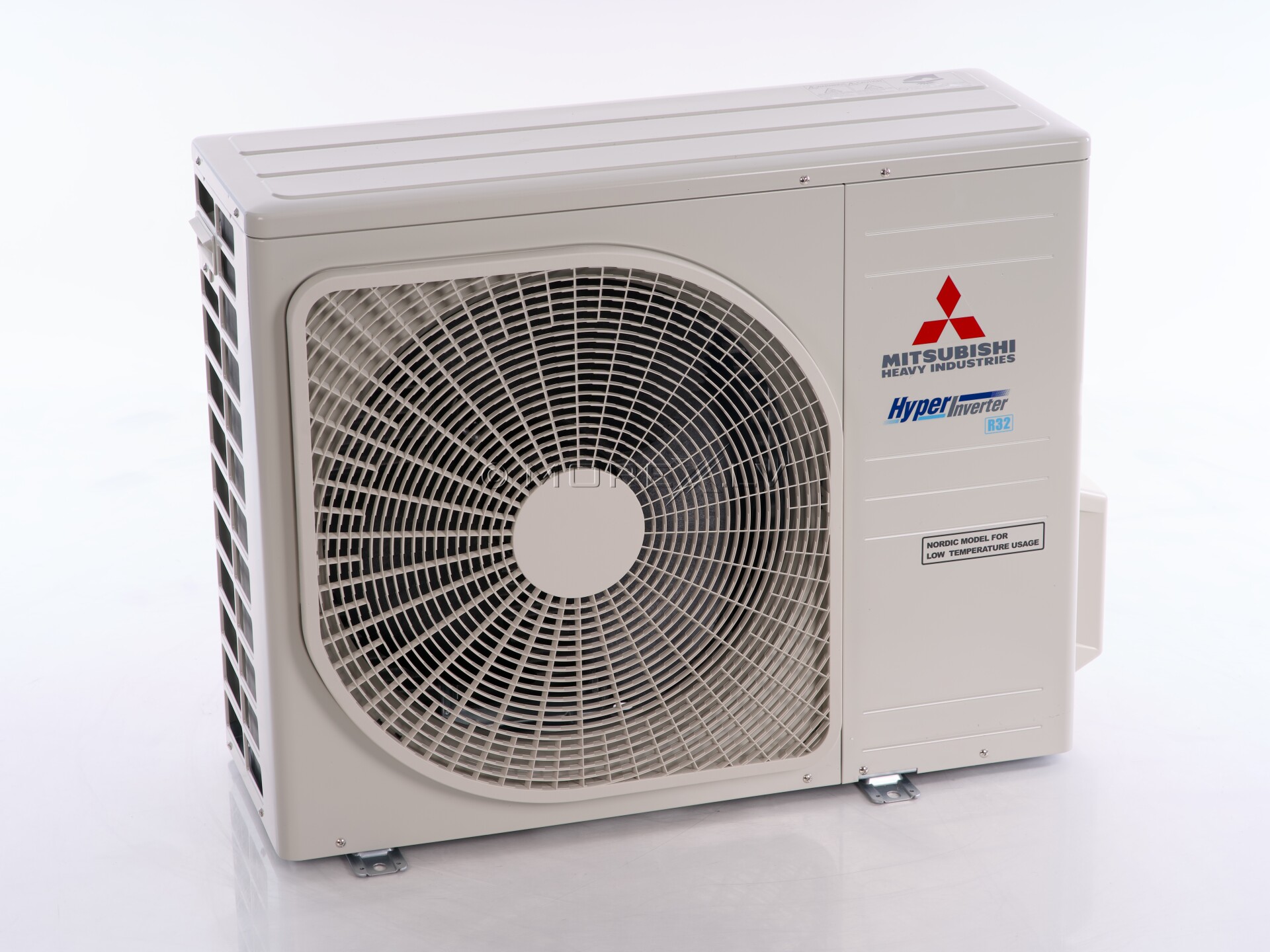

• Outdoor unit: SRC35ZTX-WA
• Power supply: 220–240 V, 1 phase, 50 Hz
• Pipe length: up to 25 m
• Height difference: up to 15 m

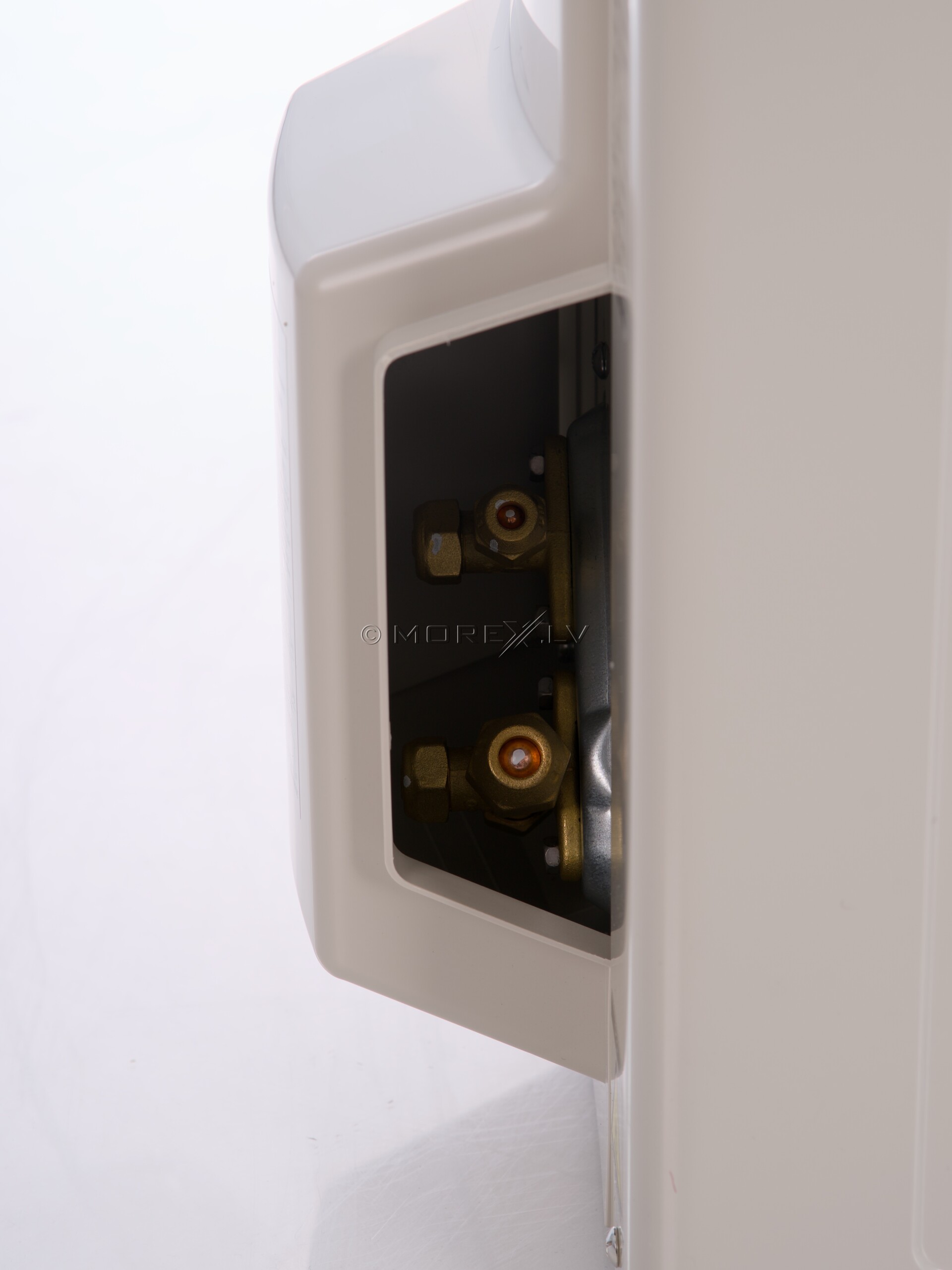

• Pipe size: 1/4" liquid / 3/8" gas
• Indoor unit: 305 × 920 × 220 mm / 13 kg
• Outdoor unit: 640 × 800 (+71) × 290 mm / 45 kg
