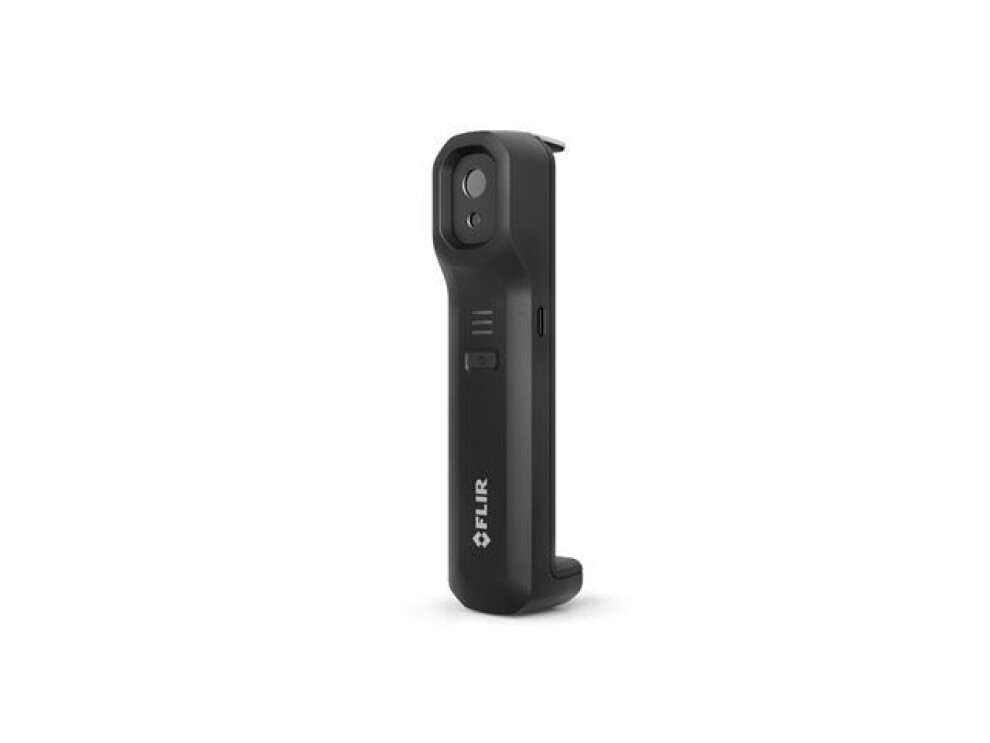

FLIR ONE Edge Pro Thermal Camera with Pouch

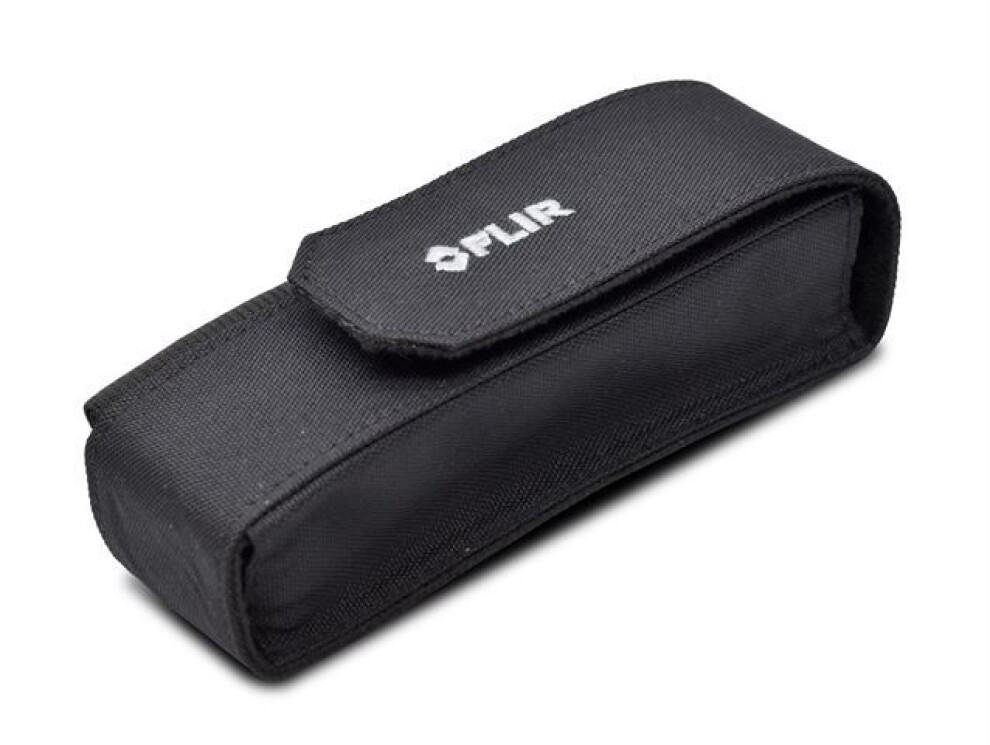

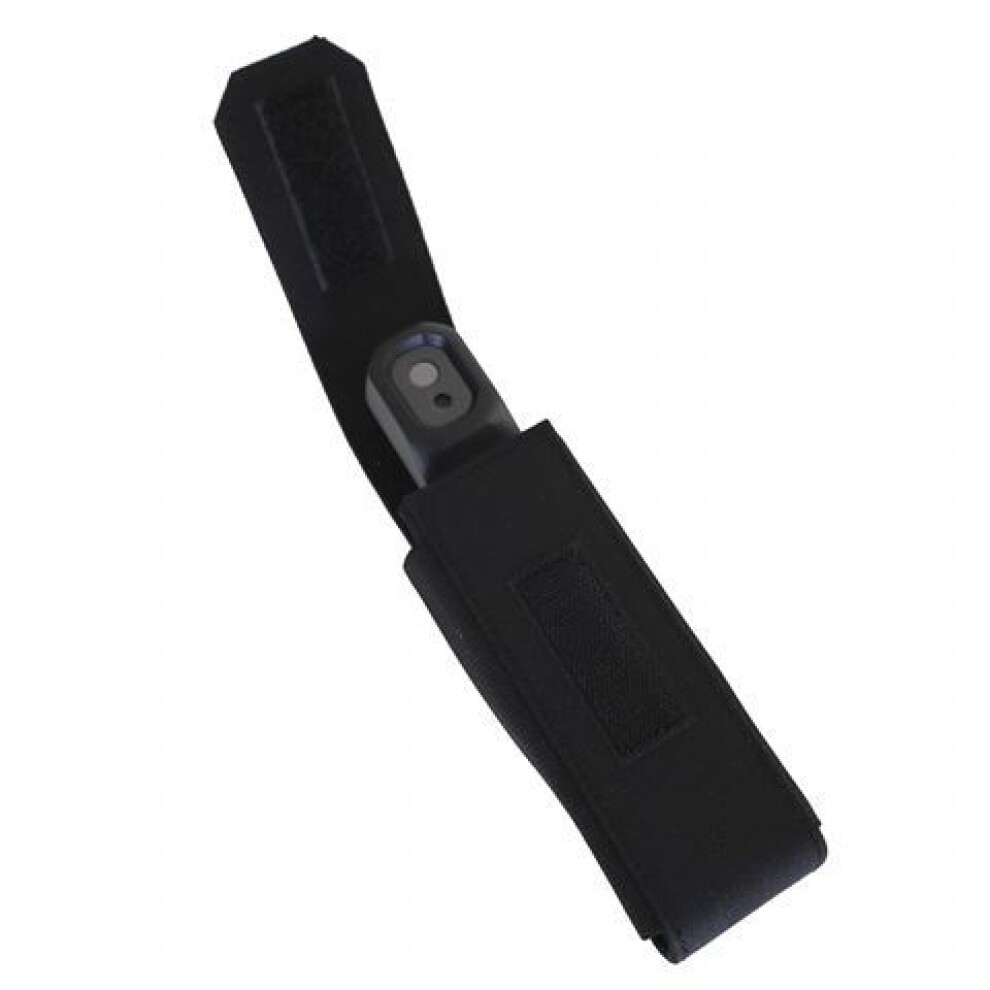

When purchasing this combo, you get the pouch for free!

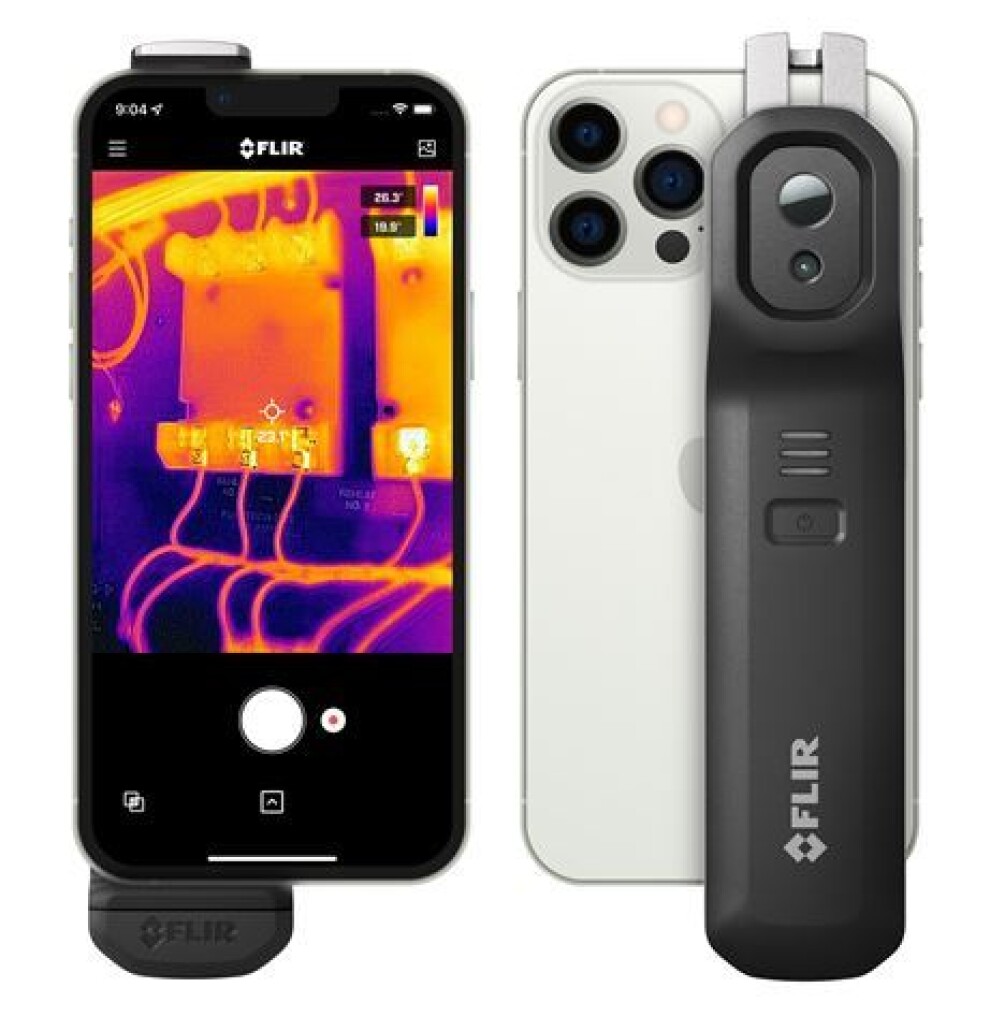

The FLIR ONE Edge Pro is a compact, rugged professional thermal imaging camera that you can use for all kinds of thermography. The thermal camera features a 160x120 VOx detector, offers a mix of visible and thermal images. The FLIR ONE Edge Pro features Wi-fi and Bluetooth and is easily controlled via the FLIR ONE app on both Android and iOS devices. Its handy size also allows you to position the thermal imaging camera in areas that are difficult to inspect. Want your hands free? Then clip the camera onto your phone or table (Clip on range 13-19 cm). The recordings can be uploaded to the FLIR Ignite™ Cloud in addition to local storage on your phone or tablet.

MSX technology and VividIR

The image displayed is a combination of thermal imaging and a visual camera. This mixture of visible and thermal images is called MSX (or Multi-Spectral Dynamic Imaging). The visual camera provides sharp, detail-rich contours, while the thermal image provides imaging of temperature gradients. Using the MSX slider, you can set the balance between visual/thermal image yourself or also turn both off completely. Due to the latest VividIR technique where multiple image frames are combined, you are guaranteed the best image quality.

Measure and visualize

With the FLIR ONE Edge Pro you can actually measure temperatures, but also determine and set the temperature range. To display heat differences as comprehensibly as possible, the camera offers different color palettes. Among other things, you can use the Grey palette for the highest contrast, or just "Rainbow" to see the entire color spectrum from coldest to warmest object.

Taking, saving and sharing images

The camera allows you to take pictures and save them with corresponding parameters. Captured images can then be automatically shared in the FLIR Ignite Cloud, where you can store and manage all files, as well as share them directly with the team or clients. Once you have MSX enabled, photos are saved in both thermal image and visible image.

FLIR ONE Edge Pro Thermal Imager Application.

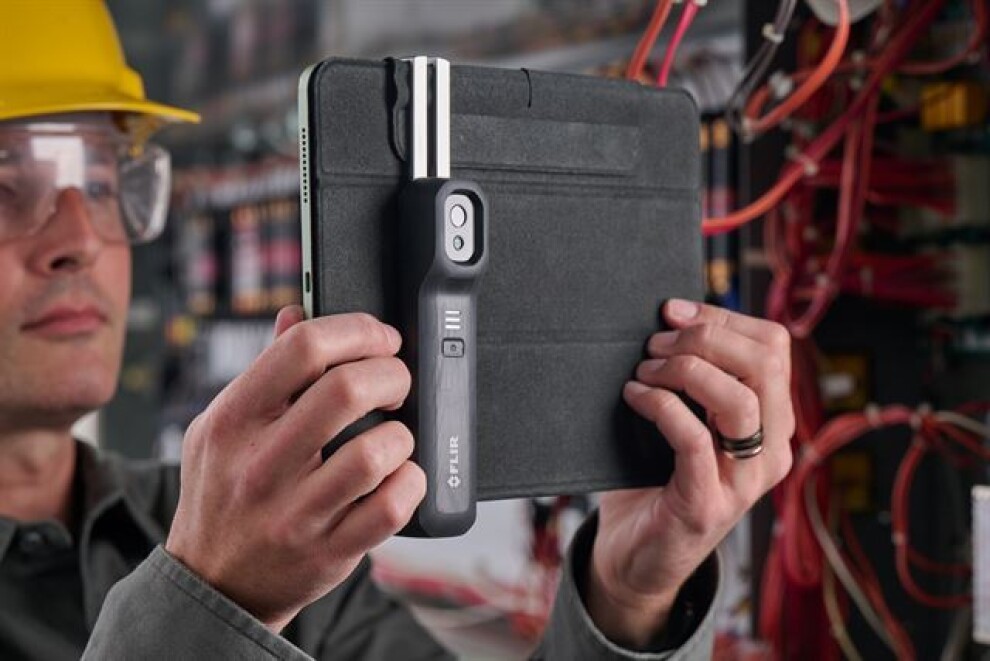

The FLIR One Edge Pro is an accessible, yet professional and robust analysis accessory that you can use for visualizing all kinds of thermal issues (thermography). The compact thermal imaging camera lends itself to both business and personal use. For professional applications, you can think of a maintenance service, plumber, real estate agent or consulting firm. Thermal imaging camera can be used for example for detecting overheating, moisture and draft leaks, or for checking HVAC systems (heating, ventilation, air conditioning). The FLIR ONE Edge Pro is IP54 certified, making it dust- and splash-proof and resistant to a fall from a height of 2 meters.


Other features

• Clip on range: 13-19 cm
• Suitable for both Android and iOS
• Control via FLIR ONE app
• Level span: manual, auto
• 3 adjustable spot measuring points
• Thermal sensitivity: 70mK
• Measurement accuracy: 3°C or 5%
• Temperature measuring range: -20°C to 400°C (or -4°F to 752°F)
• Minimum focus distance: 30 cm
• Fast charging via USB-C
• Operating time >1.5 hours. Charge time: approx. 60-90 minutes

1x FLIR ONE Edge Pro Thermal Imager;1x Pouch;1x USB-C cable;1x Quick Start Guide (ENG);1x Full-color packaging
